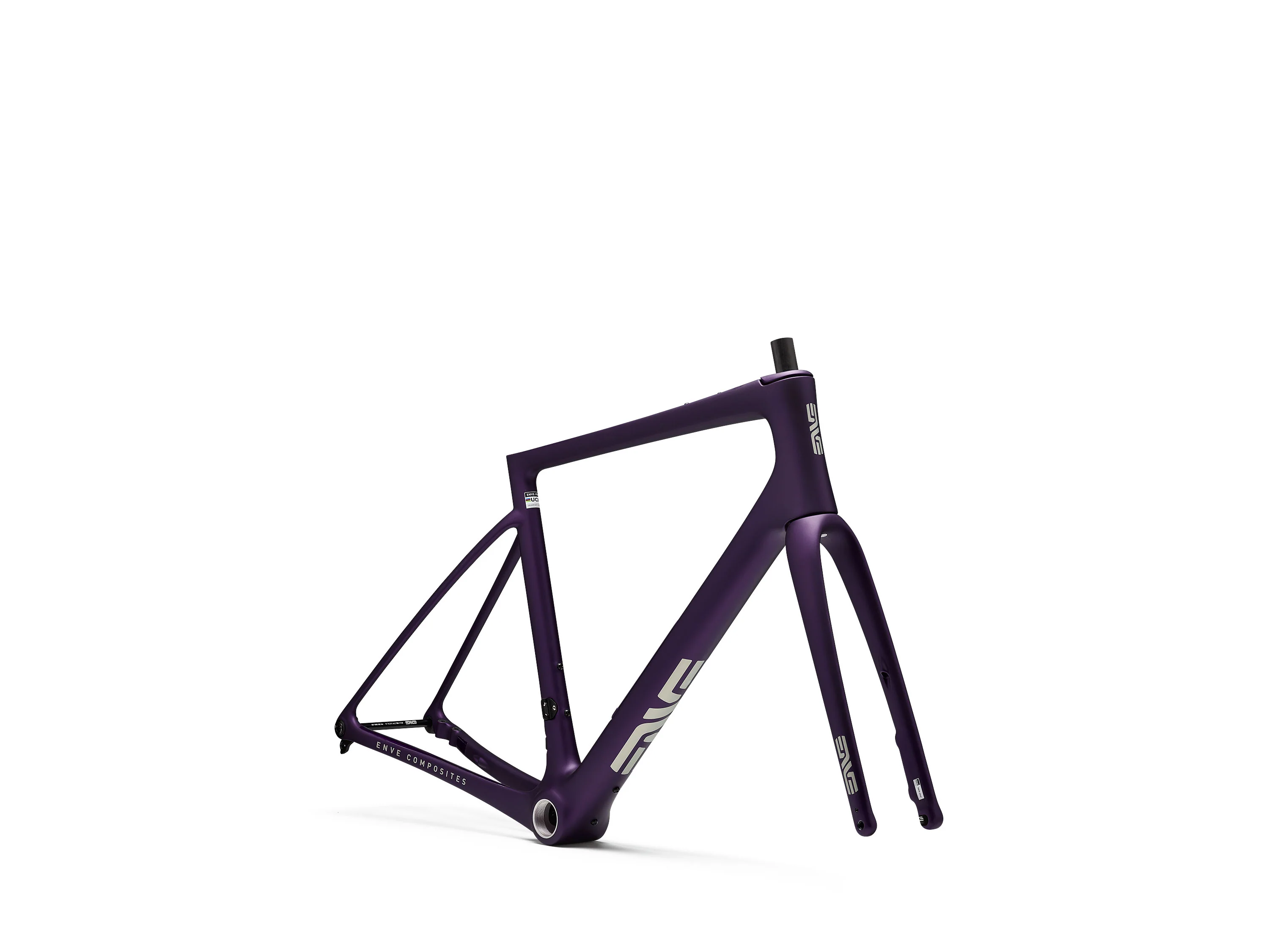

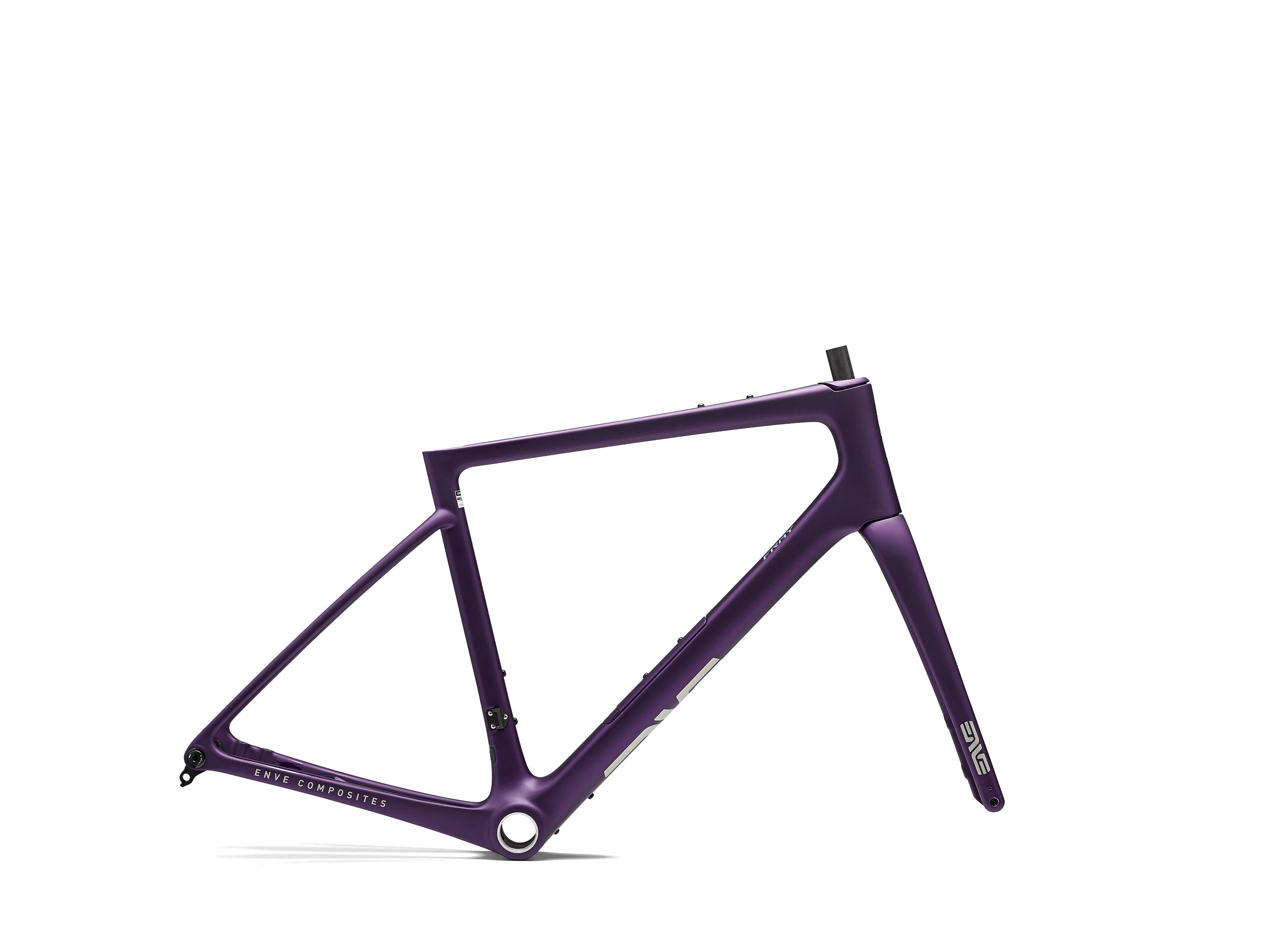

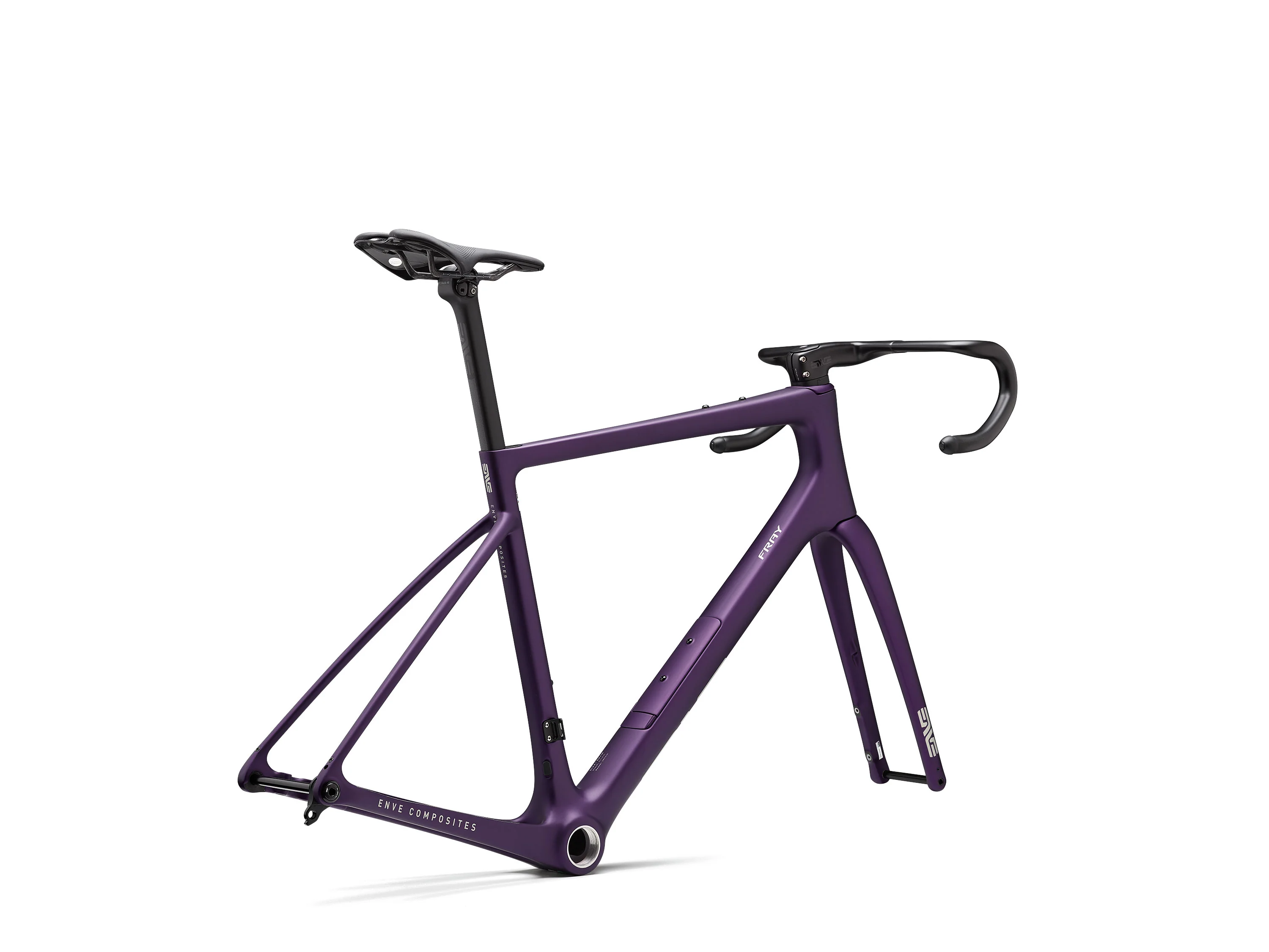

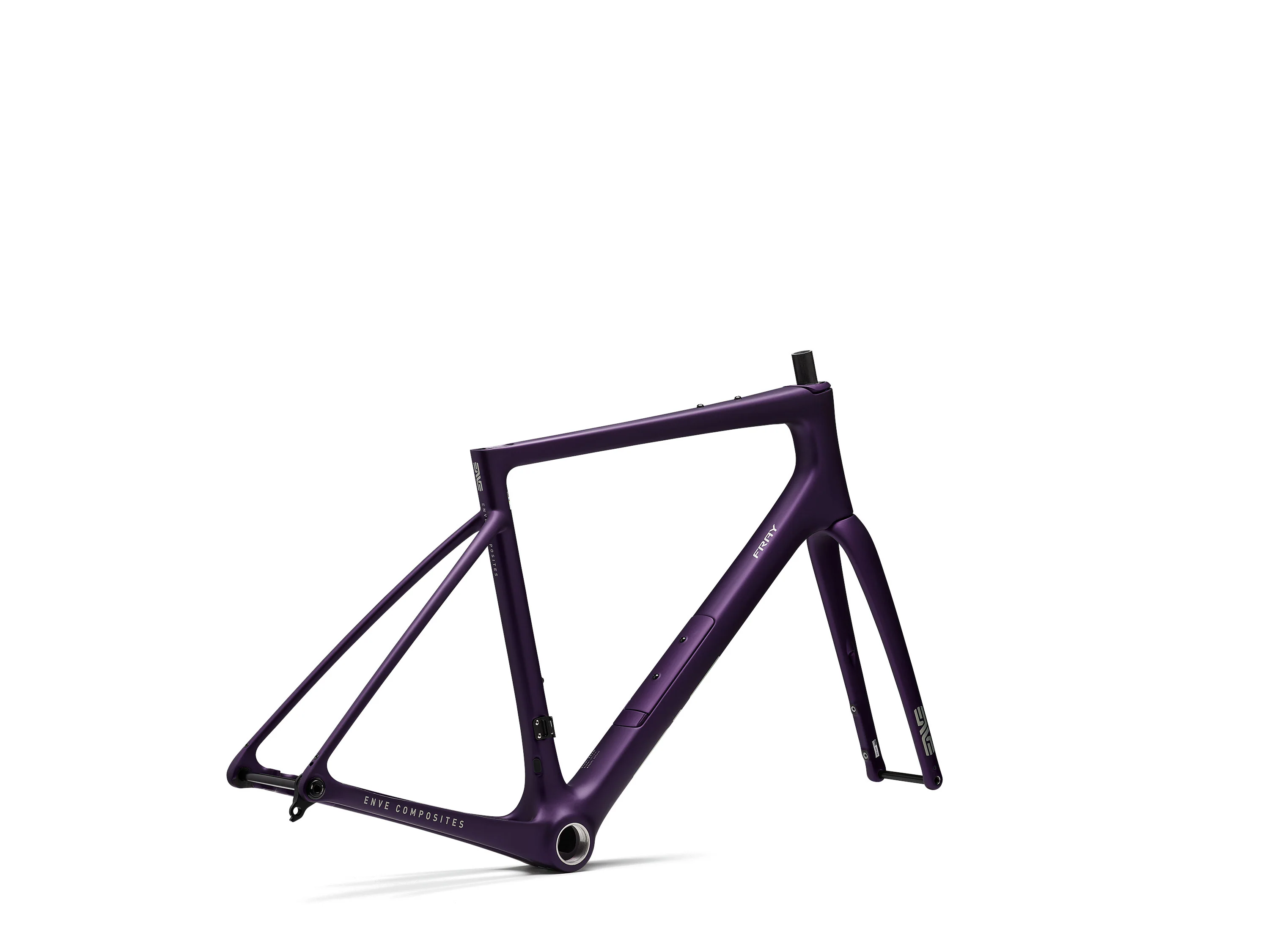

Enve Fray Perfect Purple (incl. cockpit, fork and seatpost)

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

The Fray embodies everything a modern all‑road bike should be: fast on pavement, composed on dirt, and built for riders who see every route as an open invitation. Its capability starts with generous tire clearance, accommodating up to a 700c x 40 mm tire to deliver confident handling whether you’re riding smooth tarmac, linking forgotten farm roads, or stretching a long ride into something more adventurous.

Pair that with integrated frame storage that converts unused downtube space into practical, rattle-free capacity for tools and essentials, and you get a bike that stays clean, quiet, and ready for the unexpected without compromising its refined road aesthetics

Frame Material	ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible
Fork Material	ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Target Application	All Road / Endurance / Mixed Surface / Sportif / Fondo
Sizes (cm)	47, 50, 52, 54, 56, 58, 60
Fork Rake	55, 51, 47, 43
Frame Size/Fork Rake	47cm/55, 50cm/55, 52cm/51, 54cm/51,
	56cm/47, 58cm/47, 60cm/43
Frame Weight	900g +/- 2% (Size 56, Painted, No Hardware)
Headset	ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing	1.5″ IS52 Upper and Lower
Seat Post Diameter	ENVE Aero
BB Type	T47 Inboard Bearing
Brake Mount	Flat Mount
Front Axle	12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle	12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size	27mm
Optimal Tire Size	31mm - 35mm
Maximum Listed Tire Clearance 1x	40mm
Maximum Listed Tire Clearance 2x	38mm
In-Frame Storage	Yes (2 Storage Bags included - 18.22 cubic cm each)
Frame Routing	Internal
Waterbottle Capacity	3
Top Tube Mounts	Yes
Fender Compatible	Yes
Wheel Size	700c
